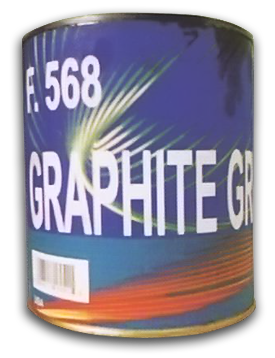

UPS F.568
GRAPHITE GREASE
DESCRIPTION :
UPS F.568 is a special diester synthetic compound with an exceptionally high flashpoint. Additives include the unique included graphite and mosy of supplements, ensuring extreme temperature resistance up to (650 ºC) and for short periods beyond. Special viscosity improves using hybridic polymers have been developed to extend the service life of this lubricant.
UPS F.568 is a revolutionary lubricant in that it is potentially the first lubricant to utilize the capillary system of film formation. This means that the lubricant remains stable at all times, regardless of temperature fluctautions, which has been the major obstacle with all ordinary grease. The high temperature resistance of UPS F.568 is nearly double that of ordinary greases.
TECHNICAL SPECIFICATION:
Specific Gravity |
(ASTM D–1298) |
0,9766 |
Viscosity Index |
(ASTM D–2270) |
130 |
Viscosity @ 100 ºC |
(ASTM D–88) |
2000 – 2500 |
Viscosity @ 200 ºC |
(ASTM D–88) |
225 |
Flash Point, (COC), ºC |
(ASTM D–92) |
325 – 599 |
Dropping Point, ºC |
(ASTM D–566) |
None |
Worked Penetration @ 77 ºF, 150 gm/cone |
(ASTM D–217) |
270 – 300 |
Rust Prevention |
(ASTM D–1743) |
1 Rating |
Oxidation Stability,Lbs.Loss in 100 hrs |
(ASTM D–943) |
4 |
Timken Ok Load, Lbs.Min. |
(ASTM D–2509) |
35 |
Differential Thermal Analysis |
(ASTM D–1831) |
8 Typical |
Normal Temperature Range ºC |
- |
-10 s/d 200 |
Maximum Temperature Range ºC |
- |
-10 s/d 300 |
NLGI Grade |
(ASTM D–217) |
2 |
Appearance |
- |
Black |
Base Oil |
- |
Molybdenum |
Disulphide |
